GER-CHP4-0140-VAL

R 15

Germany Valvo Live Demo
Kreditkarte (number 009) serial 000505
2 chip module (CIS pattern)
9 contact (buttonkontakt)

Out of stock

Description

Germany Valvo Live Demo

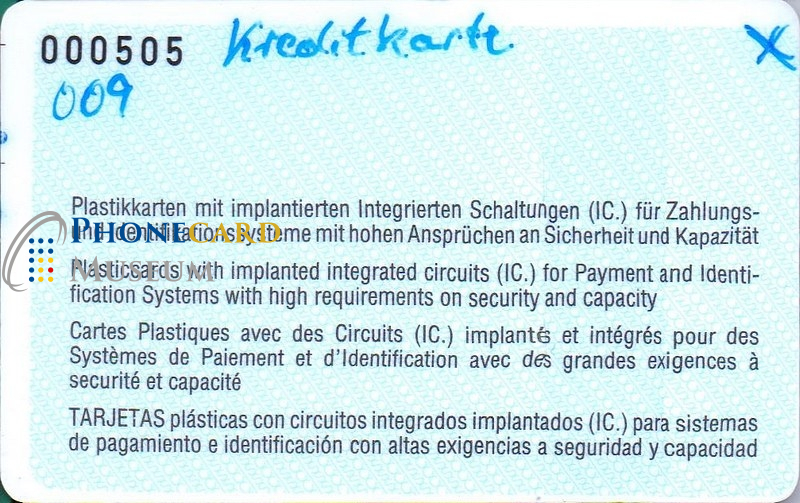

Kreditkarte (number 009) serial 000505
2 chip module (CIS pattern)
9 contact (buttonkontakt)
Manufactured 1980-1982 and demonstrated at Hannover-Messe 1982.

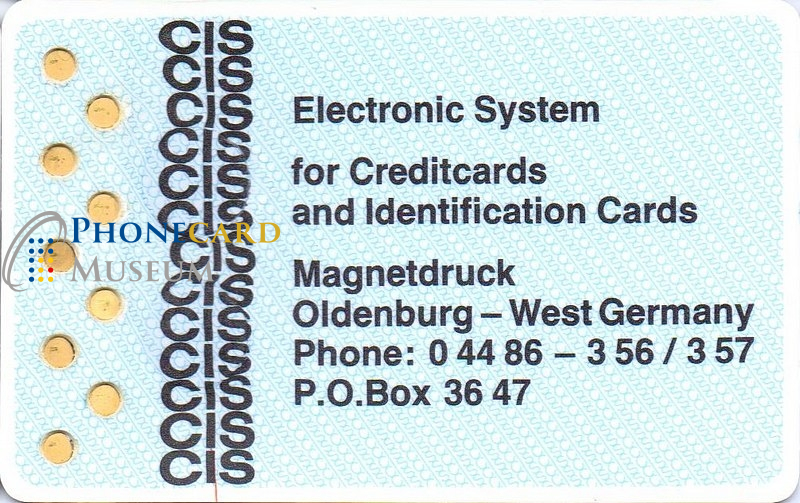

This example shows more clearly the print warp, resulting from heat molding the chip module into the card.


Valvo had it’s beginnings as a company in 1924. Philips is the Parent company
Wikipedia-Valvo
The name Valvo, derived from the English word  valve (valve, electron tube) was appropriate, as the company was a leading manufacturer of these components.

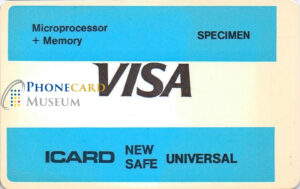

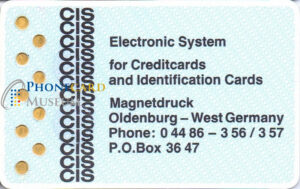

In the mid 1970’s Valvo, and the parent company Philips, began investigating the patents of Jürgen Dethloff, and Helmut Gröttrup (1969-1972) regarding IC cards. The Dethloff registered product name was ICARD (ref ERFINDERGALERIE). Early development involved 2 very different module layout, both using the 9 contacts described in the Dethloff patents. Philips focused on left side bar contacts, and Valvo developed the 9 button contacts. Cards were manufactured by Magnetdruck Steenken & Co, Oldenburg (CIS – Creditcards Identification System)

valvo007a

Valvo-Article
It is interesting to note that the first EFTPOS trials using Chipcards also involved the company Philips, who conducted the IPSO field trial of Banking, and Phonecard in Caen, France, from 1981-1985. Philips in France also used a 2 chip handshake module, with redesigned contacts.
IPSO-Caen

Dr.-Ing. Wolfgang Kern has donated documentation to the Museum, as well as a selection of the test and demo cards of both types, and we would like to thank him for his assistance with this interesting part of Chipcard history.
